Installation Example

  Installation Example


Home Home Home Home Home Home Home Home

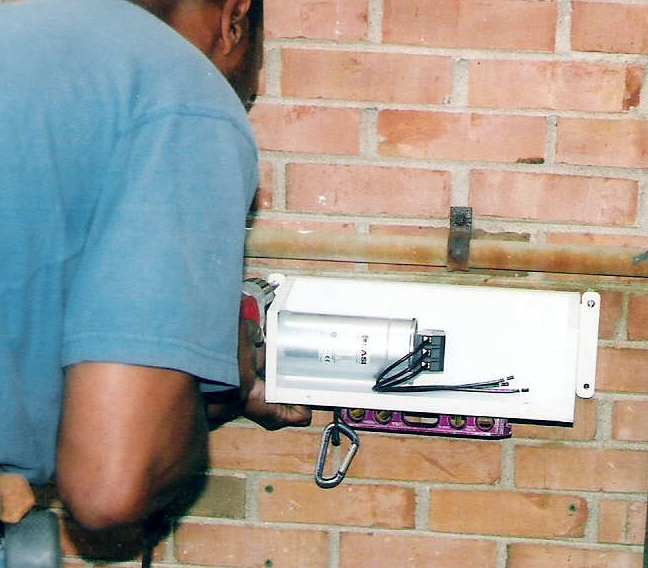

scan0005.jpg (37217 bytes) Waterproof case being leveled and mounted.

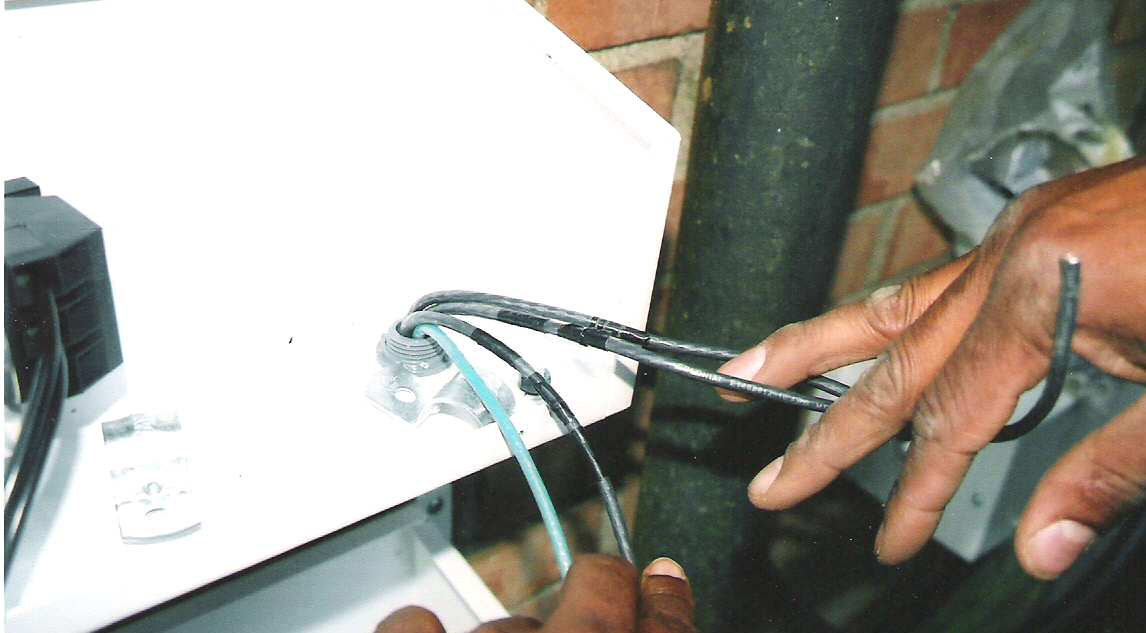

scan0004.jpg (51886 bytes) Wires being pulled and marked for phases.

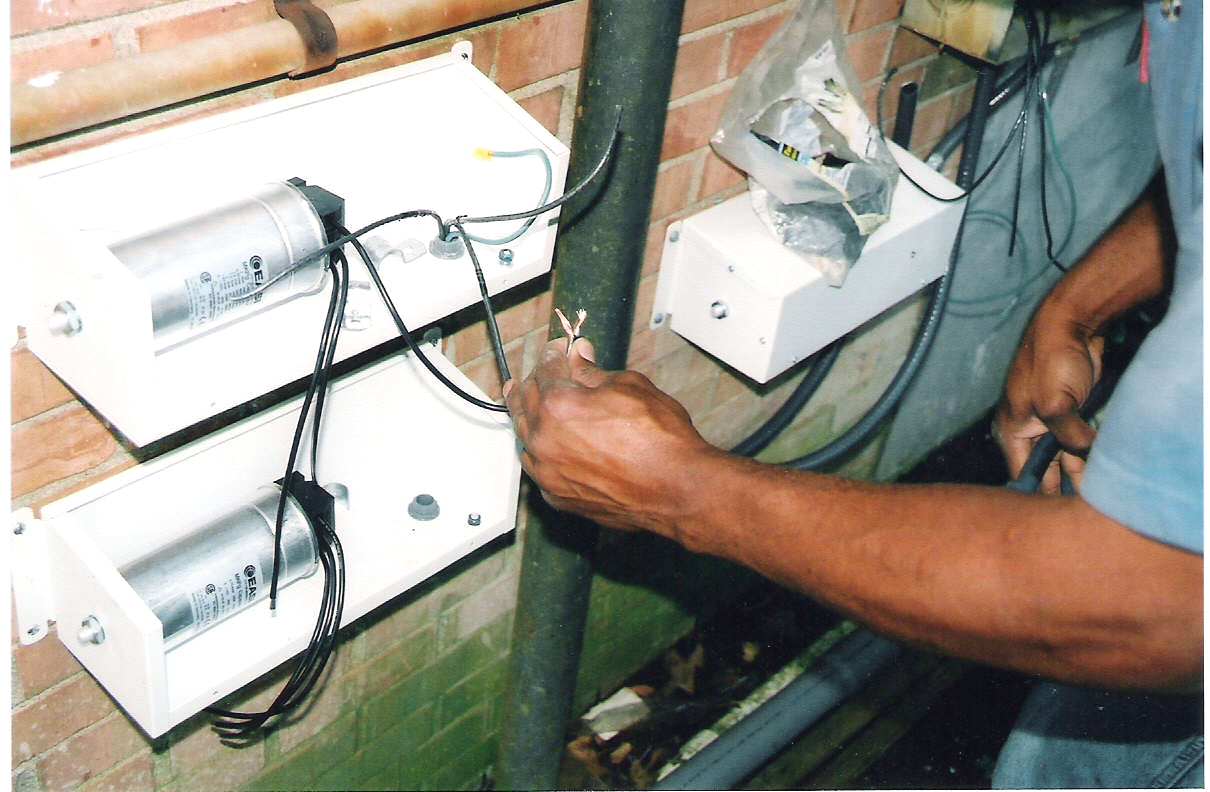

scan0003.jpg (95435 bytes) Wires being connected to load side of disconnect.

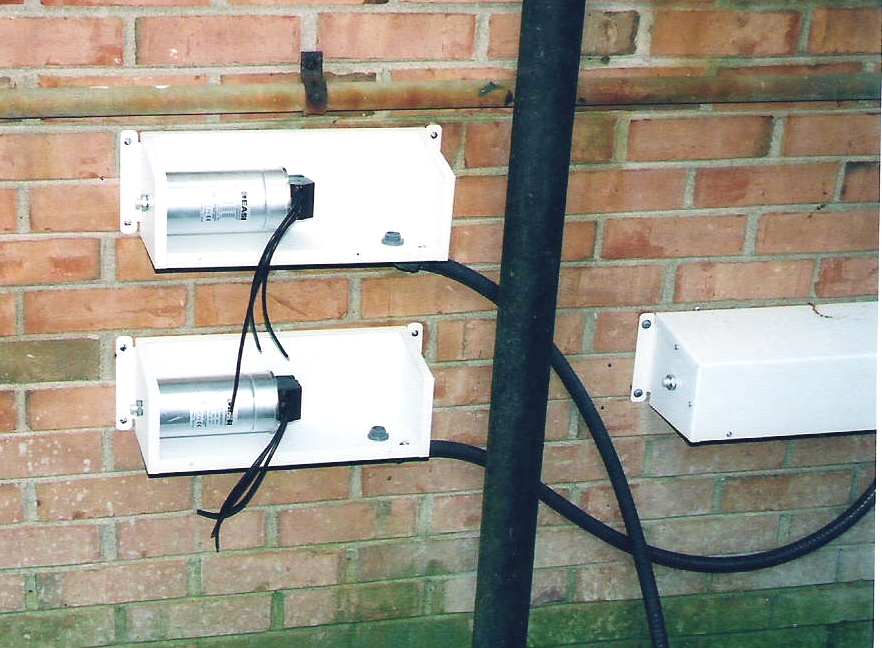

scan0002.jpg (78598 bytes) Wires prior to connection, one connected.

scan00013ph.jpg (53847 bytes) Wires spliced only ground wire left to be connected to self grounding box.

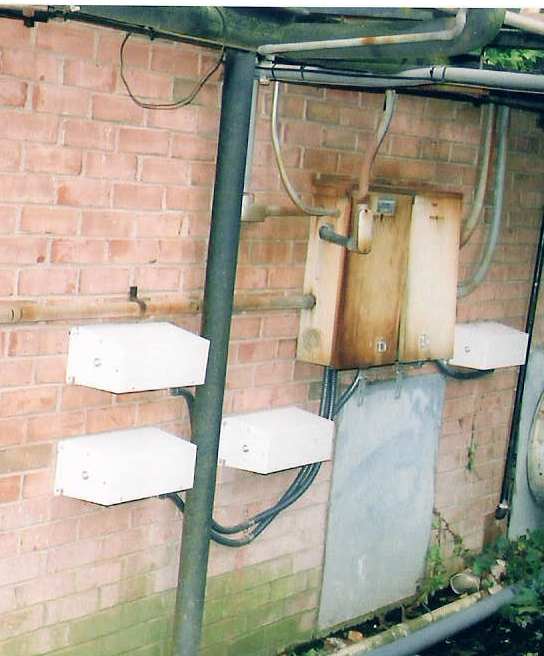

scan3ph.jpg (41524 bytes) 3 phase power factor correction units connected to load side of disconnect.

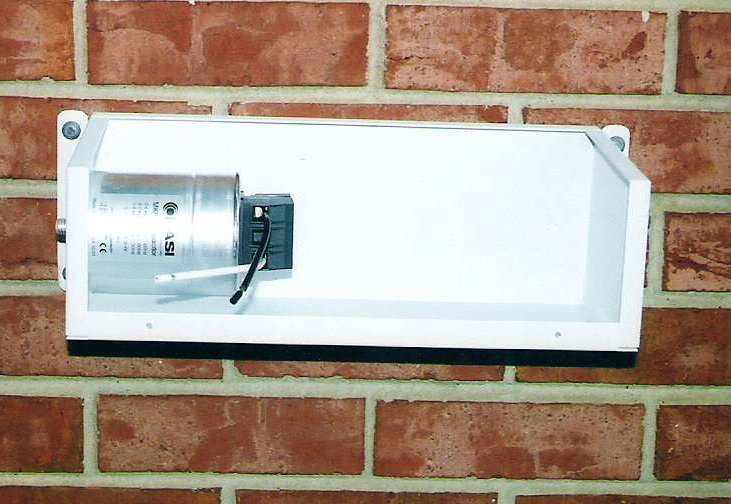

scan0013.jpg (44648 bytes) Single phase power factor correction unit.

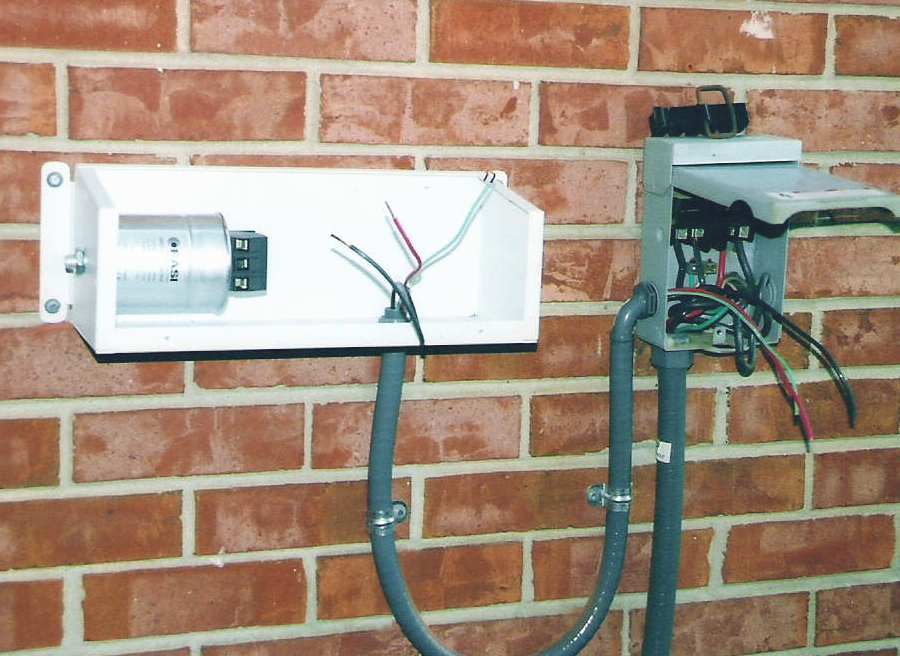

scan1ph.jpg (89538 bytes) Single phase wires connected to load side of disconnect.

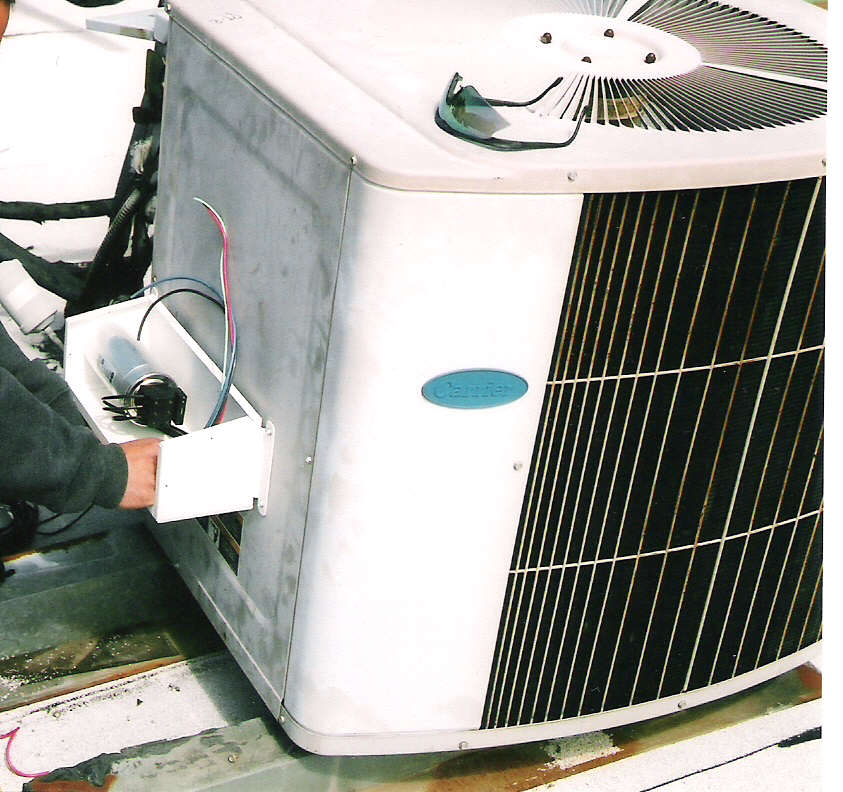

scan0010.jpg (97699 bytes) Roof top mounting on side of a/c unit with wires pulled.

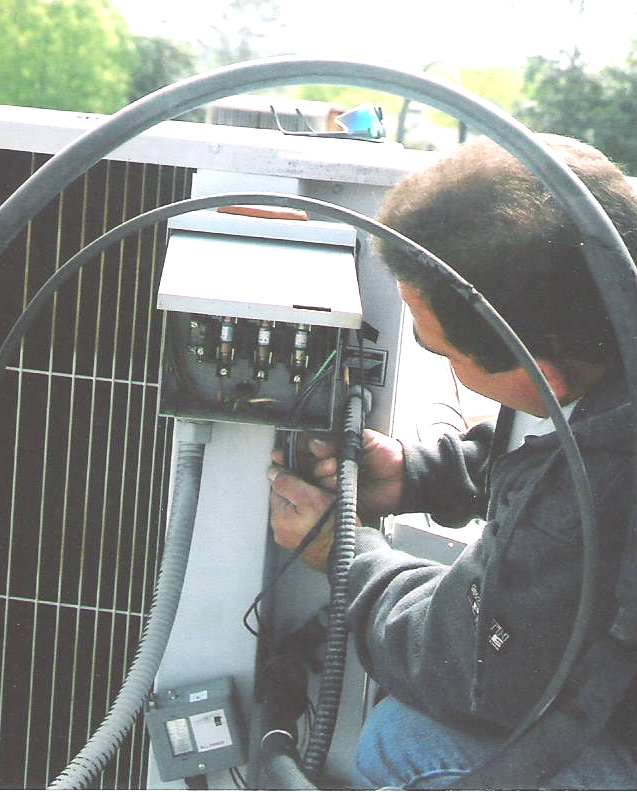

scan0011.jpg (54751 bytes) Roof top wires being connected to load side of disconnect.

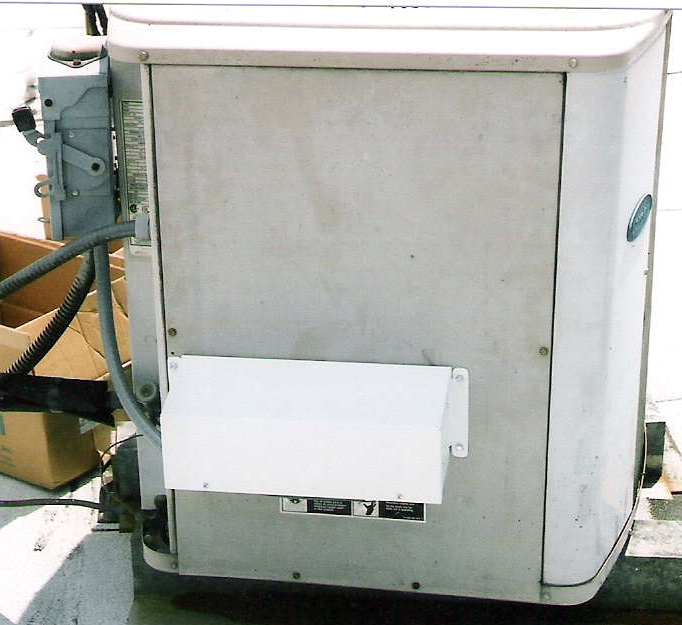

scan0016.jpg (39262 bytes) Roof top power factor correction unit connected to load side of a/c unit disconnect.
